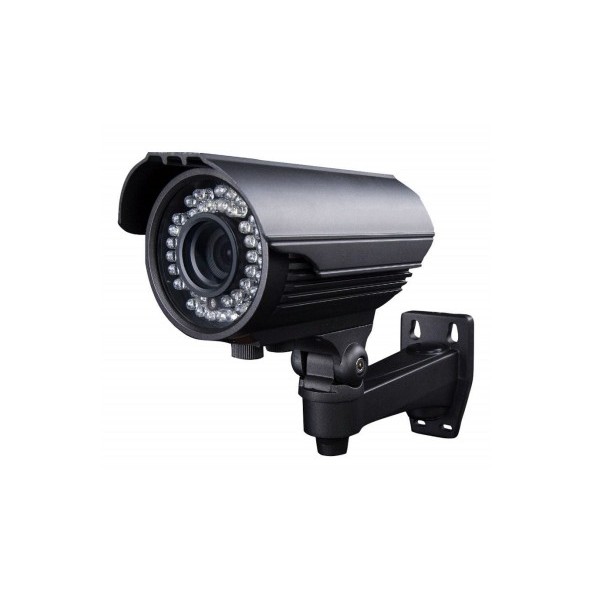

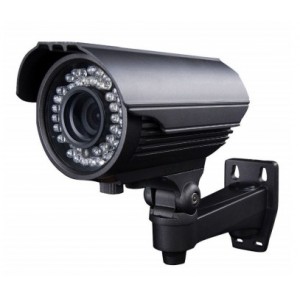

CAMERA EXTERIEUR CW1140 D&N 600TVL 4-9 MM



CW1140


IMAGE DEVICE: 1/3" SONY CCD

EFFECTIVE PIXELS: 752 (H) X 582 (V)

SIGNAL SYSTEm. PAL/NTSC

SYNCHRONIZATION: INTERNAL SYNCHRONIZATION

HORIZONTAL RESOLUTION: 600 TVL

MINIMUM ILLUMINATION : 0.01 LUX / 0 LUX (IR ON)

S/N RATIO: >58DB

VIDEO OUTPUT: 1.0V

GAMMA CORRECTION: 0.45

WHITE BALANCE: ATW/MANUAL/AUTO

AGC: AUTO/MANUAL/OFF

BLC: ON/OFF

ELECTRONIC SHUTTER: 1/50 (1/60) - 1/100,00 SEC

LENS TYPE: 4-9 MM MANUAL ZOOM LENS

IR LED: 5 X 42 PCS

IR EFFECTIVE RANGE: MAX 40 M

HOUSING: 3-AXIS HIDDEN CABLE TRHOUG BRACKET, EXTERNAL LENS ADJUSTMENT

POWER SUPPLY: 12 VDC

OPERATING TEMPERATURE: -20°C - 60 ° C

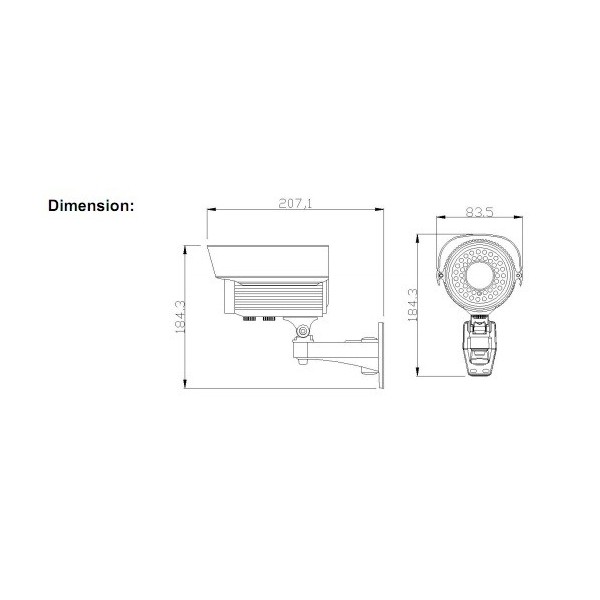

DIMENSIONS: 207.1 MM (L) X 83.5 MM (W) X 184.3 MM (H)

WEIGHT: 980 G
