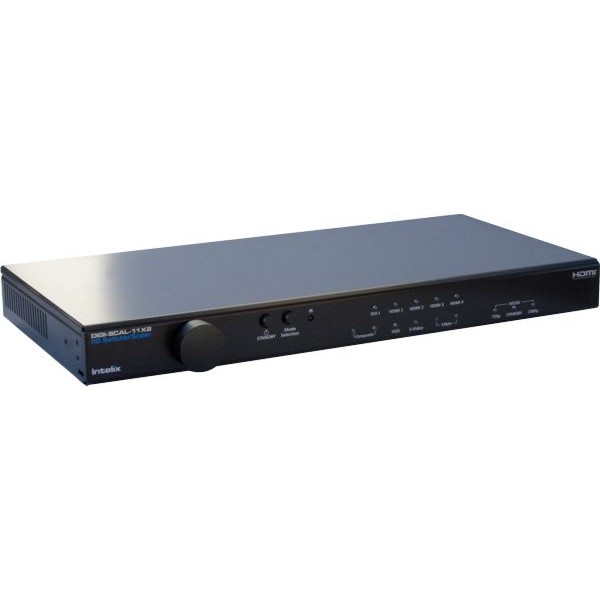

Le Digi-Intelix SCAL-11x2 permet une commutation entre onze différentes sources audio visuel, jusqu'à 720p ou 1080p, et les convertits en signaux HDMI pour une intégration transparente à votre environnement HD.

Fréquence vertical: 24- 60 Hz

Signaling Rate: 2.25 gigabits par seconde

Input DDC Signal: 5.0 volts p-p (TTL)

Input Vidéo Signal: 0.5 to 1.0 volts p-p

Vidéo Amplifier Bandwdth: 255 MHz

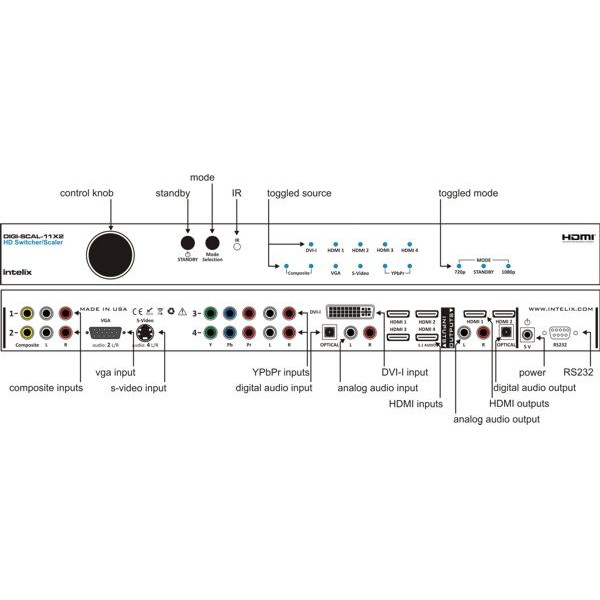

Input Connectors:

• (4) HDMI (Type A)
• (2) Composite video (RCA)
• (2) YPbPr video (RCA)
• (1) VGA (HD15)
• (1) S-Video (4 pin)
• (1) DVI (DVI-I)
• (5) stereo audio (RCA)
• (1) digital audio (optical)

Output Connectors:

• (2) HDMI (Type A)
• (1) Stereo audio (RCA)
• (1) Digital audio (optical)

Supported Video Résolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Upscaling: 720p, 1080p

Supported Input Audio: Stereo audio, digital audio (5.1 on HDMI Channel 4)

Audio Output Audio: Dual HDMI (digital audio) Optical (audio from HDMI) Stereo audio (audio from HDMI)

Support VGA/DVI Résolution (60Hz):  800x600, 1024x768, 1152x864, 1280x720, 1280x960, 1280x1024, 1440x900, 1600x1200, 1920x1080

Operating Temperature: -5 to 35° Celcius

Operating Humidity: 50 to 90% non-condensing

Dimensions: 16.9" x 1.75" x 7.9"

Control: Front panel, RS232, IR, wireless remote

Enclosure: Black metal

Max Power consumption: 15 watts

Power: 5 VDC

Régulatory: CE, RoHS

Shipping Weight: 8 lbs

Intelix Part Number: DIGI-SCAL-11X2

Included Accessories: (2) 19" rack ears, (1) power supply, (1) wireless remote control, (4) shelf feet

Warrantly: 2 years

Documentation technique
